Gateway activity

Every MCP Gateway workspace has a Gateway activity dashboard of its own: how many tool calls ran in the last day, week or month, how many succeeded, how long they took, which actors made them, and every individual call with its status and duration. A second, smaller Activity page in the same workspace covers a different subject — connection lifecycle events — and says so itself.

​

Where to find it

Open MCP Gateway → Workspaces, select a workspace, and choose Dashboard — the last entry in the workspace tab strip on its Overview, alongside Open integrations, LLM keys and Settings. The workspace id sits in the path and the tab and range are search parameters, so a refresh, the back button or a link you paste to a colleague reopens the same view. Both parameters are optional and take a fixed set of values — dashboard, users or team-usage for the tab, 24h, 7d or 30d for the range — and a link that leaves them off opens the Dashboard tab over the last 24 hours. There is no organization-wide version. The organization-level dashboard address redirects to the Workspaces page, because every figure here describes one workspace and a page with no workspace open could not say which. Unlike the rest of organization settings, which is owner and admin only, the MCP Gateway pages are open to any member of the organization — and the workspace list only ever offers the workspaces you belong to. See workspaces. Above the tabs sit Last updated with the time of the last read (Loading activity… until the first one returns), a range selector whose menu offers Last 24 hours, Last 7 days and Last 30 days (closed, it shows the short form the URL carries — 24h, 7d, 30d), and a Refresh button that refetches without changing the URL. Three page-level messages replace the tab content entirely:

​

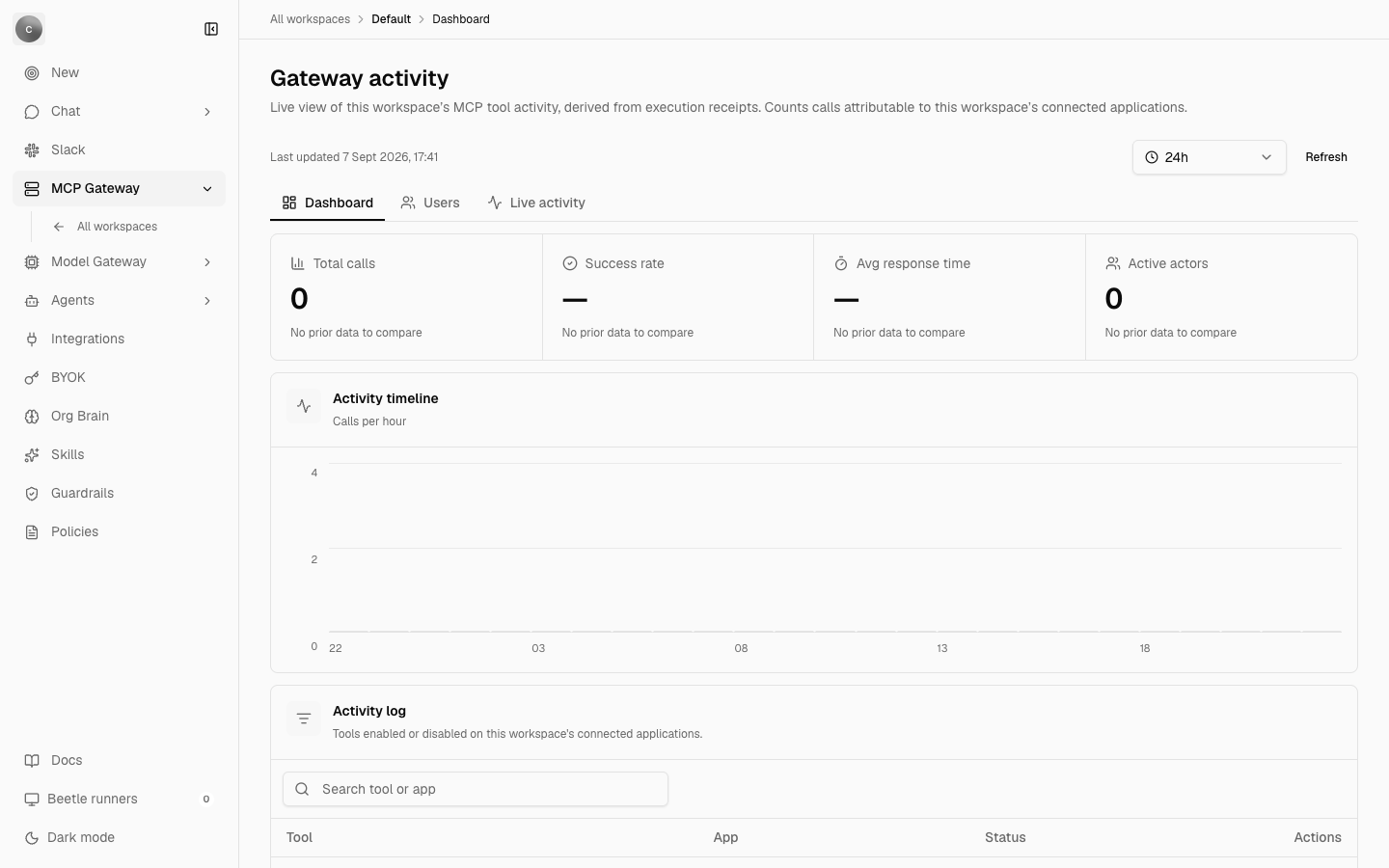

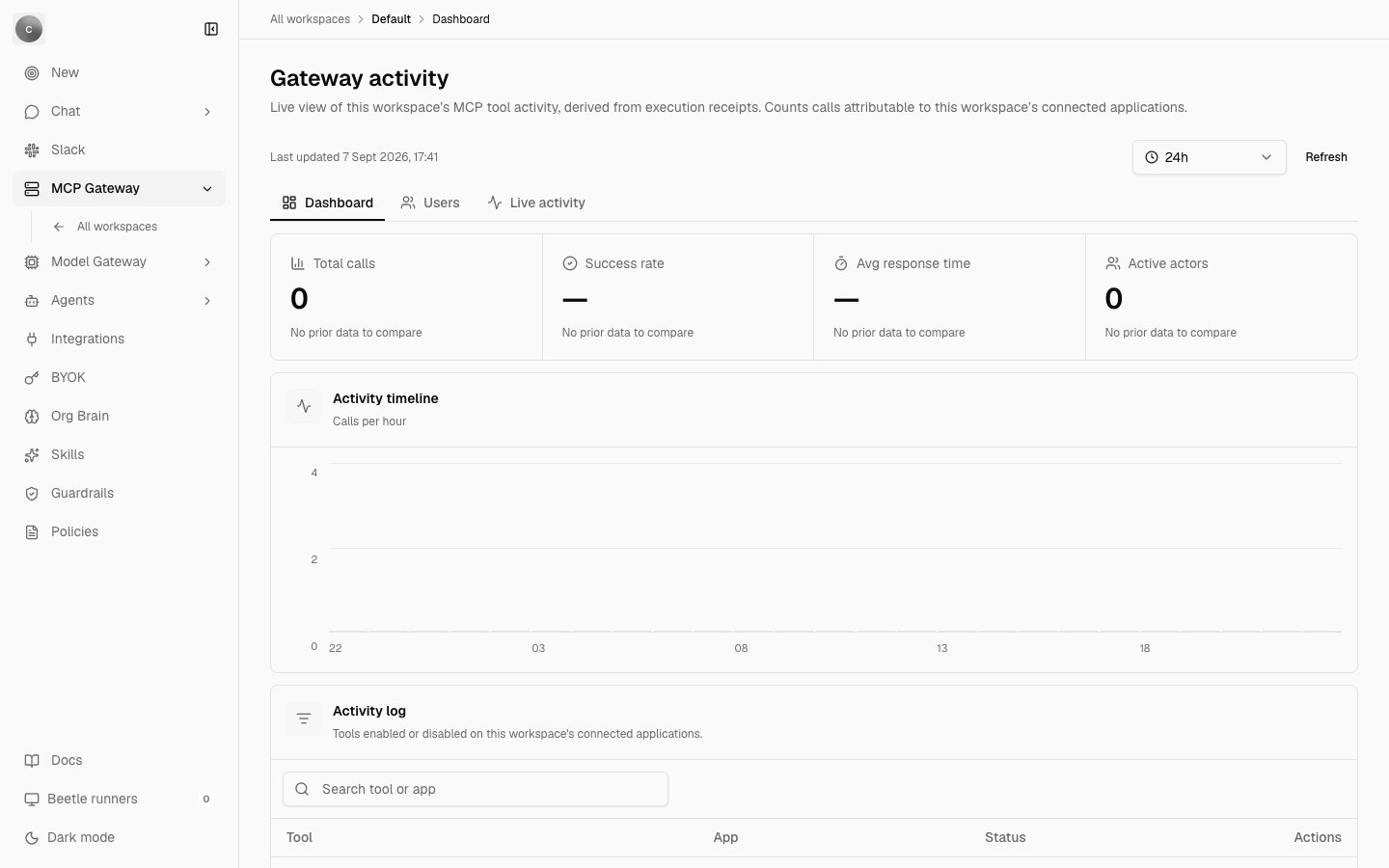

The Dashboard tab

Four tiles summarise the window, each with a comparison against the immediately preceding window of the same length. A delta line appears only when there is something truthful to say. When a metric is missing from either window — nothing settled, no call reported a duration — or when both windows are empty, the line reads No prior data to compare instead of a fabricated zero change. A rise from nothing is stated as a count rather than a percentage. Activity timeline plots call volume as one bar per bucket: Calls per hour over 24 hours, Calls per six hours over 7 days, Calls per day over 30 days, which keeps the column count near 24–30 at every range. Every bucket in the window is drawn, including the empty ones, so a quiet period looks quiet rather than being compressed into a dense-looking cluster. A window with no traffic is therefore a flat chart, not a message: No calls in this period. appears only when the organization has no receipt log to read at all. Activity log underneath is a different subject: “Tools enabled or disabled on this workspace’s connected applications.” It is the record of decisions about the gateway rather than traffic through it — a tool enabled or disabled, an integration connected or disconnected, a member invited or removed, a workspace created or removed. It follows the same window as the tiles, has a Search tool or app box, columns Tool, App, Status and Actions, a row menu carrying the full Created timestamp with its time zone, and shows at most 50 rows. Empty, it reads No tool or integration changes recorded yet. Enabling a tool or connecting an integration will appear here.; with a search that matches nothing, No tool matches this search.

​

The Users tab

Three tiles — Requests, Total tokens used and Total spend — each sub-labelled Across the organization. They come from the organization’s agent-run records rather than from gateway receipts: an MCP tool call consumes no tokens itself, the agent that decided to make it does. They follow the range you selected, but they never narrow to one workspace; for the spend figures themselves, and for what is recorded per model call, see Usage and spend. Below them is one row per actor, ranked by request count, with columns User, Requests, Tools used (distinct tools reached for, not a repeat of the request count), Failed and Last seen. Before anything has run it reads No one has used this gateway yet. People and agents appear here once they make a request.

​

The Live activity tab

Every individual call in the loaded window, one per row. A Search tool, connector, or actor… box matches on the tool name, the actor and the connector; a status filter offers All statuses, Succeeded, Failed and Running; and a counter reads <n> of <m> calls. The columns are Request, Connector, Status, Duration and Actions. The request cell shows the resolved operation, falling back to the raw tool name, with the actor beneath it and the error text beneath that when the call failed. The connector cell shows an em dash when the tool resolved to no connection. The row menu holds Created and the full Tool name as the caller invoked it — search matches that name rather than the shortened operation in the cell. Rows are paged 25 at a time, adjustable to 10, 50 or 100. Status is derived from the receipt pair rather than stored:

• Succeeded — a tool.observed receipt followed the call.
• Failed — the tool.called receipt carried an error, which settles the call immediately.
• Running — neither: a tool.called with no error and no observation yet.

Filtering happens over the window already in memory rather than by refetching, so a narrowed view can never disagree with the totals on the Dashboard tab. With filters applied and nothing matching, the table reads No requests match these filters.; with no filters and nothing recorded, No gateway entries found. Agent activity will appear here as your team makes requests.

​

How the figures are derived

Each gateway call recorded through /connect/call writes a tool.called receipt and, when it succeeds, a tool.observed receipt, into a stream belonging to that workspace — carrying the tool name, the arguments it was called with, the duration and the workspace. The observation carries the first 2,000 characters of the result and marks itself truncated beyond that, so no full payload is copied into a receipt. A failed call gets only the tool.called, with its error. Each load of the page reads up to 5,000 tool.called and 5,000 tool.observed receipts from the organization’s streams and merges them in sequence order, so an observation is always processed after the call it belongs to. The selected window and the one before it come out of that same read, which is why the deltas cost nothing extra. A call belongs to this workspace when its receipt recorded a matching workspace id. Receipts written before that field existed fall back to connector attribution: the tool name is resolved against this workspace’s own valid connections through the receipt_<provider>_<connection>_<operation> and <provider>__<connection>__<operation> forms, plus the mcp__<server>__<tool> convention MCP clients use. A name that resolves to no connected application cannot be assigned to a workspace, so it is left out of the workspace’s figures rather than counted under every workspace. Nothing is filled in with a placeholder: a metric that cannot be computed from a receipt renders as an em dash. Read the page as a picture of the tool calls that were recorded, not as a complete account of what an agent did — for that, open the run’s replay.

​

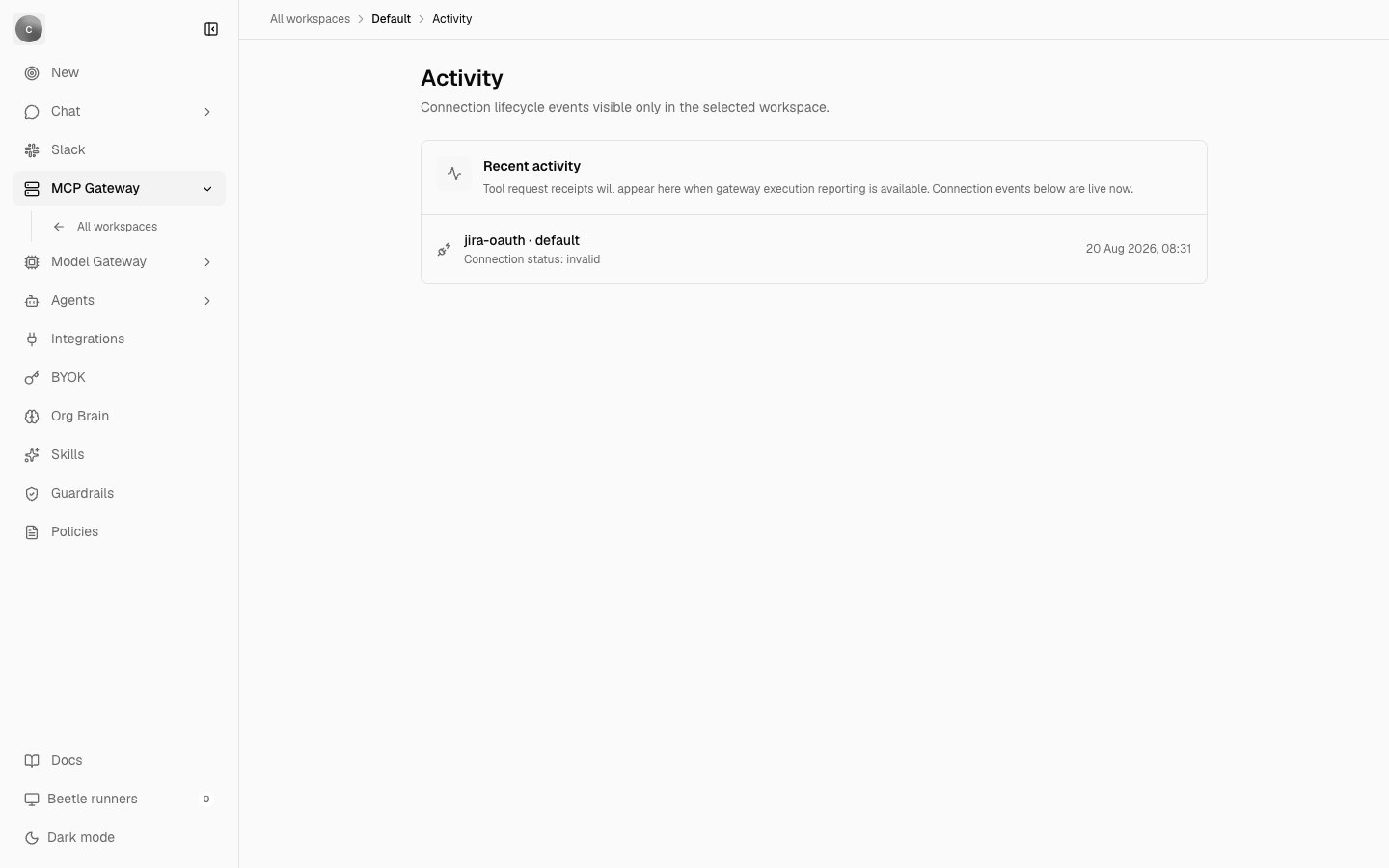

The workspace Activity page

A separate, smaller page titled Activity describes itself as “Connection lifecycle events visible only in the selected workspace.” It has no sidebar link; you reach it at the workspace’s …/activity address, where the breadcrumb reads Activity. It lists that workspace’s connections, most recently changed first, each as provider · name with Connection status: <status> and the time it last changed. The list is the replicated connection table rather than receipts, so it reflects connecting, reauthorizing and disconnecting an app — an invalid status is the signal that a connection needs reconnecting. With no connections it reads No activity in this workspace yet. Next step: understand the security model.
